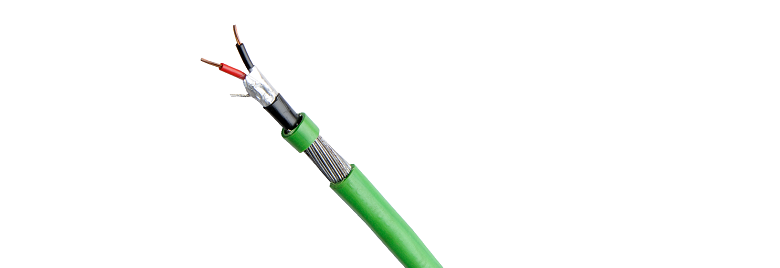

Thermocouple Cables are used to measure the temperature directly. Extension & Compensating wires are used to extend a thermocouple signal from a sensor to an instrument for readings.
Construction: | Single or Multi pair |
Voltage Grade: | Up to 1.1 KV |
Conductor: | TC, EX, C |
Type of Conductor: | K, T, J, E, N, R, S, B, D, C |
Conductor Size: | AWG 12 to AWG 32 |
Conductor Stranding: | Solid or Multistrand |
Core Insulation: | PVC, PTFE, FEP, PFA, Silicon, Polyamide, Fiber Glass, Ceramic Fiber etc. |
Screening: | Aluminum Foil type/Mesh Braided type |
Inner/Outer Sheath: | PVC, Teflon, Polyamide, Fiber Glass, Ceramic Fiber etc. |
Armoring: | G.I. Armoring/SS Braiding |
Standards: | ANSI MC 96.1, IEC 584.3, IS 8784 |
