LV CONTROL AND POWER CABLES


Contact Us

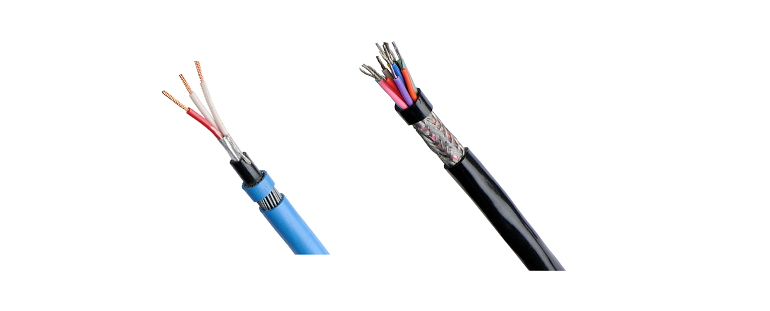

Tempsens provides Control & Power cable up to 1.1 kV voltage grade with a variety of insulation.


TECHNICAL SPECIFICATION:

Construction:
2, 3, 4, 5, 7, 12 or multiple cores
Voltage grade:
Up to 1.1 kv
Conductor:
ABC, TPC, NPC, SPC, Ni
Conductor size:
0.50, 0.75, 1.0, 1.5, 2.5 Sq mm or as per customer requirement
Conductor stranding:
Solid or Multistrand
Core insulation:
PVC, PTFE, FEP, PFA, Silicon, Polyamide, Fiber Glass, Ceramic Fiber etc.
Screening:
Aluminum Foil type/Mesh Braided type
Inner/outer sheath:
PVC, Teflon, Polyamide, Fiber Glass, Ceramic Fiber etc.
Armoring:
G.I. Armoring/SS Braiding
Standards:
As per IS 1554, IEC 60502, IEC 60227, JSS 51038, IS 8130:84
