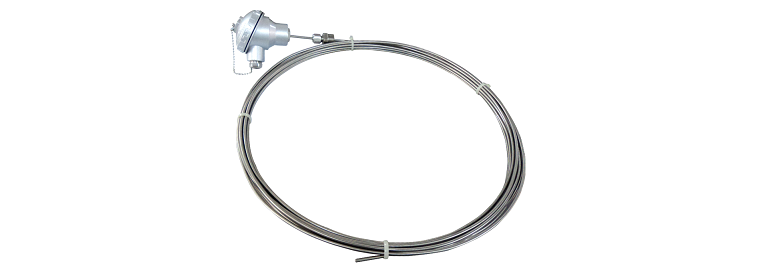

MINERAL INSULATED THERMOCOUPLE


Contact Us

Thermocouples essentially comprise a thermoelement (which is a junction of two dissimilar metals) and an appropriate two wire extension lead. A thermocouple operates on the basis of the junction located in the process producing a small voltage, which increases with temperature. It does so on a reasonably stable and repeatable basis.



Specification & Types:

  • Type : J, K, T, E, N, R, S
    Element Size (MI) : 0.25, 0.5, 1, 1.5, 3, 4.5, 6, 8mm,
    Other sizes on request
    Sheath Material : SS321, SS316, SS310 HRS 446, INCONEL 600, Nimonic, Platinum, Pyrosil etc.
    Configuration: Simplex/Duplex/Multipoint
    Special: Miniature Thermocouples with minimum 0.25mm Dia
    Swaged Tip Thermocouples
    Tube Temperature Skin Type Thermocouples
    Special Sensors as per ASTM-E235
    High Wall Thickness
Application Example

In Power Plant, Manufacturing Plant, Temperature Measurement, Research & Development & Other Process Industries.
